Model 7500 - Automatic Stacker

Click here to view the full brochure for this machine

Versatile ---Handles a wide range of sizes and materials. Finished loads are accessible from three sides.

Portable ---Can be moved by one person for use with different machines in your plant.

Self-Contained ---No other equipment such as scissors lifts to buy.

Labor-Saving ---Reduces handling cost, eliminates a tedious job.

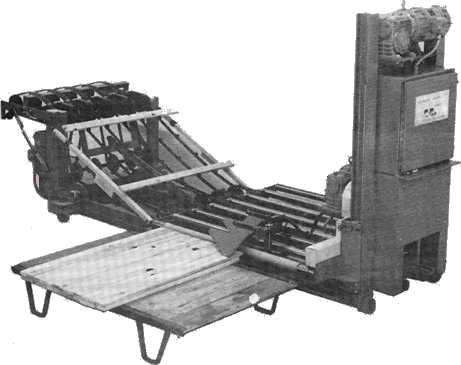

The Model 7500 Panel Stacker is fully automatic and will handle a wide range of panel sizes and thicknesses, and a variety of different materials such as wood, fiber board, pressed wood, cardboard, and plastic. The Stacker builds a load up to five feet high on shop trucks, skids or pallets. The Stacker can be ordered with a unique attenuating device which stops the forward movement of the panel and lowers it slowly to the pile. In many applications this will eliminate the need for a backstop. The machine is ruggedly constructed, and yet portable so it can be used on different jobs. Maintenance is easy since the machine has no hydraulics, pneumatics, or complicated electronics.

240 volt, 3 phase, 60 cycle

Other voltage requirements available on special order

1/2 HP 1800/36 rpm

1/2 HP 1800/125 rpm

1 HP 1800/97 rpm
