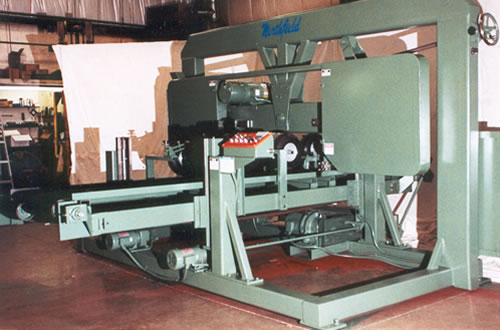

Horizontal 36" Band Saw with Tilting Blade


For angle cutting, roofing buildup material used for directing waterflow on flat roofs.

  • 36" x 2" steel disc wheels with demountable steel reinforced tires
  • heavy duty quills
  • 10 HP belt drive
  • 900 RPM
  • automatic electric brakes both wheels
  • blade tilts 10° in relation to table
  • 4' wide single belt feed conveyor powered by 5 HP variable speed drive.

5" maximum stock thickness with fence and hold-down rollers. NEMA 12 electrics, paddock guides, dual dust outlets.

* Also available with dual 2' wide conveyors that are independently adjustable in height for multiple part cutting.

Specifications

Wheel Face 2"
Wheel Diameter 36" Carter Loc-on
Blade Tilts 10° in relation to conveyor
Capacity Between Quill 54"
Conveyor On Infeed Side Of Blade 8'
Conveyor On Outfeed Side Of Blade 4'
Guide

Size #20 Paddock

Brakes Automatic brakes on both wheels
Max. Stock Thickness 5"
Horsepower 10 HP
Wheel Speed 900 RPM - 8500 FPM
Floor Space 144" x 144"
Height 96"
Voltage 230/460/60/3
Domestic Shipping Wt 7000 lbs.
Export Shipping Wt 7500 lbs.
