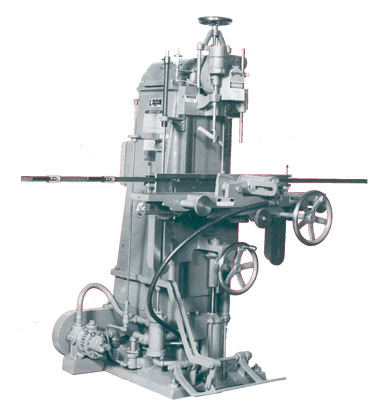

Chain-Saw Mortiser
A Precision Built Machine of proven design utilizing ideas and components to provide the user with a machine to meet the most demanding and varied needs of today's productions and vocational woodworking.
| Spindle Horsepower |
7-1/2 DMD TEFC |
| Feed Horsepower | 1 hp TEFC |
| Spindle Size | 5/8" |
| Spindle RPM | 3600 rpm |
| Center distance between sprocket shaft and chain bar bolt | Min: 5-1/2" Max: 7-1/2" |
| Chain gear capacity | 3/16" x 3/4" to 1-1/4" x 2-1/2" |
| Length of Power Feed Stroke | 0-7" |
| Vertical Adjustment Table |
13" |
| Table Tilt | 45° Right, 45° Left |
| Longitudinal Table Travel Right to Left without unclamping workpiece | 11" |
| In Out Table Adjustment | 2-1/2" |
| Domestic Shipping Weight | 2300 lbs. |
| Net Weight | 2150 lbs. |
| Export Shipping Weight | 2550 lbs. |
| Cubic Measure Export Box | 161 cu. ft. |
| Voltages | 208, 230/460, 575 3 ph 60 hz |
