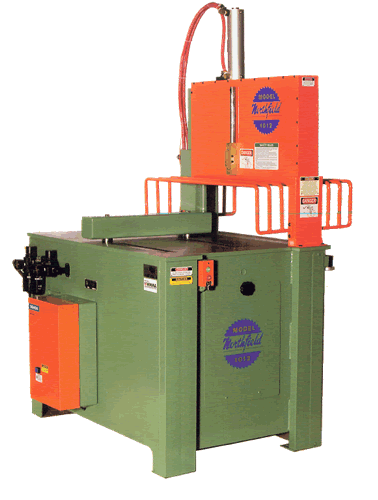

Models 612 & 1012

For cutting lumber, non-ferrous metals, plastics & composites

Click here to view the full brochure for this machine

	Model 612	Model 1012
Table Height	36"	36"
Table Top	34" x 49"	34" x 49"
Arbor Motor	15 HP 1800 RPM TEFC 230/460/60/3	15 HP 1800 RPM TEFC 230/460/60/3
Electrical	Magnetic Starter with 110 Volt at Push Button in NEMA 1 Enclosure	Magnetic Starter with 110 Volt at Push Button in NEMA 1 Enclosure
Air Equipment	3" x 8" Stroke Cylinder Filter, Regulator & Lubricator Single Palm Switch-Air Operated	3" x 8" Stroke Cylinder Filter, Regulator & Lubricator Single Palm Switch-Air Operated
Saw Arbor	1-1/4" Stress-proof steel w/6" Saw Collars 1800 RPM, Timken Bearings, Vee Belt Drive	1-1/4" Stress-proof steel w/6" Saw Collars 1350 RPM, Timken Bearings, Vee Belt Drive
Saw Blade	24" Diameter, 1-1/4" Bore	32" Diameter, 1-1/4" Bore
Cut Capacity	6" Thick x 12" Wide Fence Forward 2" Thick x 20" Wide Fence Rearward	10" Thick x 12" Wide Fence Forward 3" Thick x 24" Wide Fence Rearward
Operating Speed	5-15 CPM-Adj. via Flow Controls	5-10 CPM-Adj. via Flow Controls
Sawdust Outlet	4" Diameter, Rear Exit, 400 CFM	3" Diameter, Rear Exit, 400 CFM
Shipping Weight	1000 lbs. (1250 lbs. export 105 cu. ft.) 44" x 55" x 74"	1200 lbs. (1450 lbs. export 115 cu. ft.) 44" x 55" s 80"
