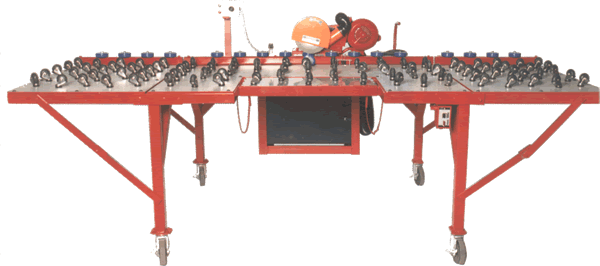

Edge Delete TableClick here to view the full brochure for this machine
| Table Work Height | 36" |
| Table Size-Wings Down | 60" wide x 54" deep |
| Table Size-Wings Up | 113" wide x 54" deep |
| Wheel Head Motor | 3/4 HP 1725 RPM TEFC |
| Arbor RPM | 4000 RPM |
| Arbor Size | 3" diameter x 1/2" wide |
| Wheel Size | 8" diameter x 3" bore x 1/4-1/2 wide deburring & finishing wheel |
| Dust Collection | 226 CFM with 99.97% HEPA filter |
| Power Requirements | 115 volt, 1 phase, 20 Amp circuit |
| Net Weight | 1500 lbs. |
| Shipping Weight | 1700 lbs. |
