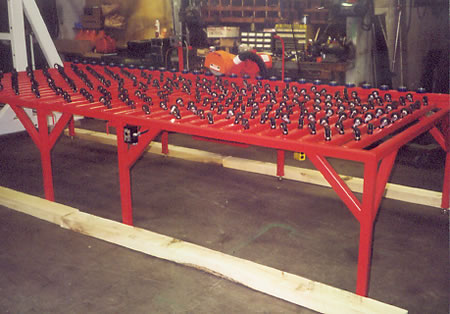

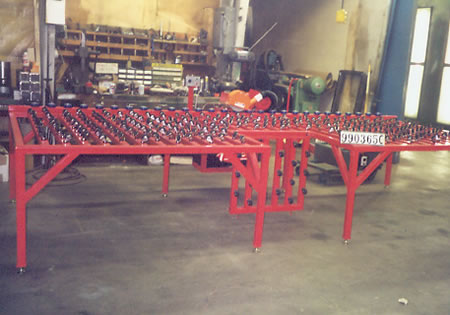

66" x 168" Edge Delete Table

w/Square Tube Caster Deck

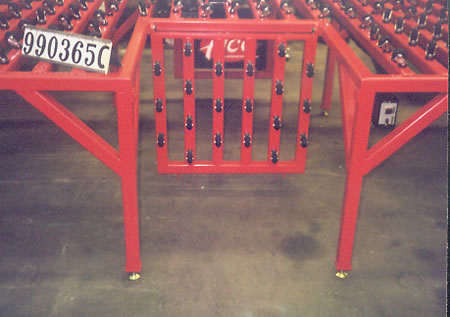

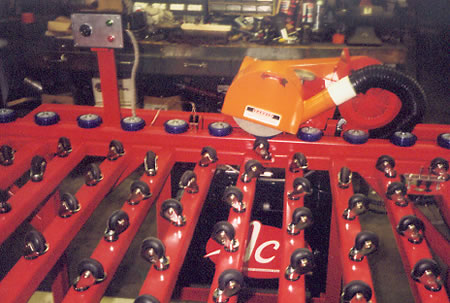

Square tube caster deck allows broken glass to fall through to the floor - same with head and detction system as above - 36" work height - 30" x 30" front drop table - no side drop tables - 8 legs with 2" height adjustment

Specifications

Table Work Height 36"
Table Size 168" wide x 66" deep
Number of legs 8 legs with 2" height adjustment
Wheel Head Motor 3/4 HP 1725 RPM TEFC
Arbor RPM 4000 RPM
Arbor Size 3" diameter x 1/2" wide
Wheel Size 8" diameter x 3" bore x 1/4-1/2 wide deburring & finishing wheel
Dust Collection 226 CFM with 99.97% HEPA filter
Power Requirements 115 volt, 1 phase, 20 Amp circuit
Net Weight 3700 lbs.
Shipping Weight 4000 lbs.
