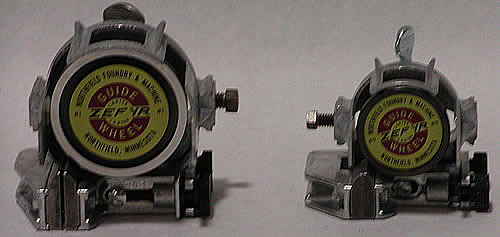

CP-10 Size #1 Carter Guide Complete | CP-20 Size #0 Carter Guide Complete

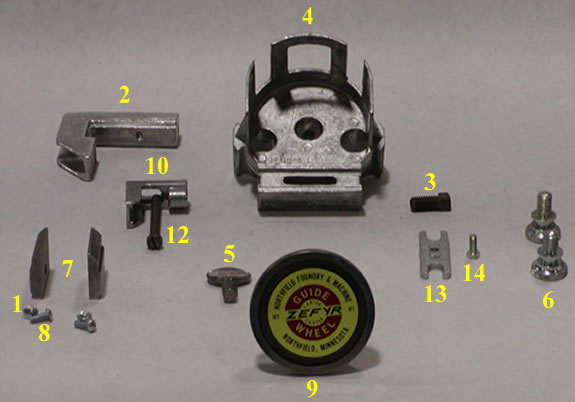

CP10 Size #1 Carter Guide Parts Breakdown

1. Locking Nut 10/24
2. CP-10-2 Rear Bracket
3. Square head set screws 3/8-16
4. CP-10-4 Housing
5. Thumb Screw 3/8-16 x 3/8
6. Bracket Adjusting Screws 3/8
7. CP-10-10A Support Blocks-Size 1
8. SB Mounting Screws 10/24 x 3/8
9. CP-10-24 Guide Wheel - Size 1
10. CP-10-1 Front Bracket
12. Bracket Locking Bolt 1/4-20 x 2
13. CP-10-5 Yoke
14. Yoke Mounting Screw 6/32

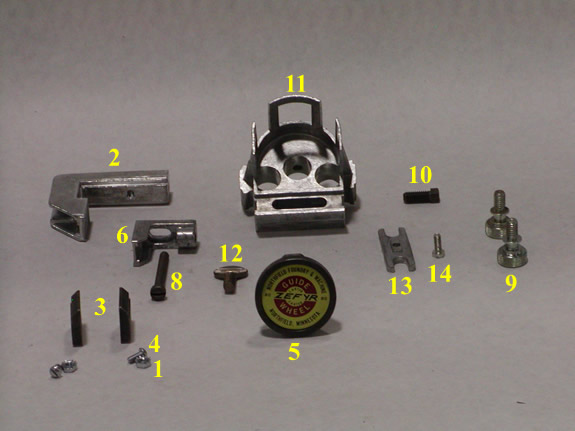

CP20 Size #0 Carter Guide Parts Breakdown

1. Locking Nut 10/24
2. CP-20-2 Rear Bracket
3. CP-20-10A Support Blocks - Size 0
4. S.B. Mounting Screws 10/24 x 3/8
5. CP-20-24 Guide Wheel - Size 0
6. CP-20-1 Front Bracket
7. Washer 1/4 (Goes with 8)
8. Bracket Locking Bolt 1/4-20x1 1/2
9. Bracket Adjusting Screws 5/16
10. Square Head Set Screws 5/16 x 1/2
11. CP-20-4 Housing
12. Thumb Screws 5/16-18 x 1/2
13. CP-20-5 Yoke
14. Yoke Mounting Screw 6/32 x 1/2

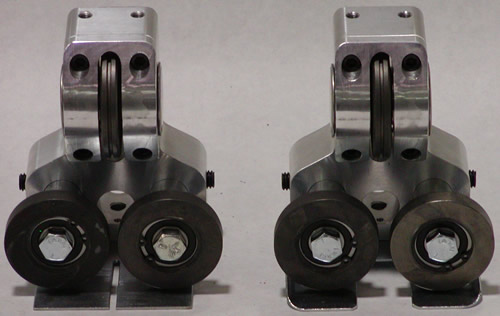

Guideall 400 Guides

400-3L Lower Guide | 400-3 Upper Guide

Guideall 400 Parts Breakdown

1. 428 Support Wheel Assembly "X" Wide
2. 418 Support Wheel Assembly Std
3. 407 Thrust Wheel Assembly
4. 405 Thrust Wheel
5. Axle & Nut
6. 404 Ball Bearings
7. Tolerance Rings
