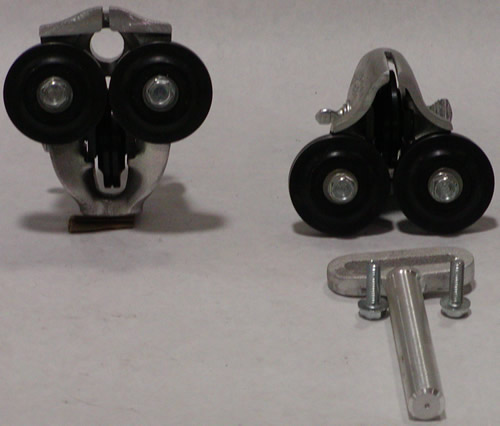

Size #20 Paddock Lower Guide | Size #20 Paddock Upper Guide

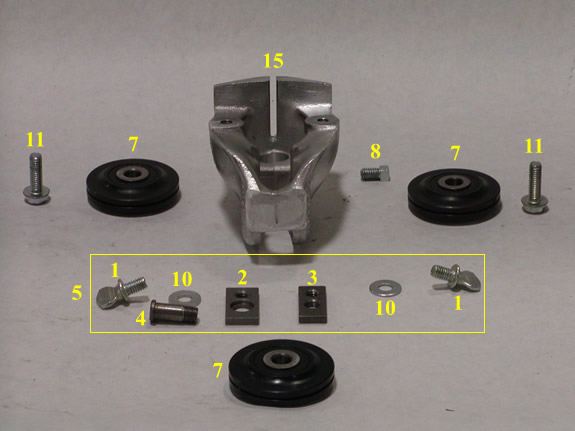

Size #20 Paddock Lower Guide Parts Breakdown

1. Thumb Screw
2. Large Slide
3. Small Slide
4. Slide Connecting Screw
5. Axle Slide Assembly
6. Lower Guide Bracket (Not shown)
7. 617-R Ball Bearing Wheel
8. 5/16" Set Screw
9. ---
10. Washer
11. 5/16" x 1" Hex Bolt
12. 3/4" Lower Guide Shaft (Not Shown)
13. ---
14. ---
15. Lower Guide Body Casting

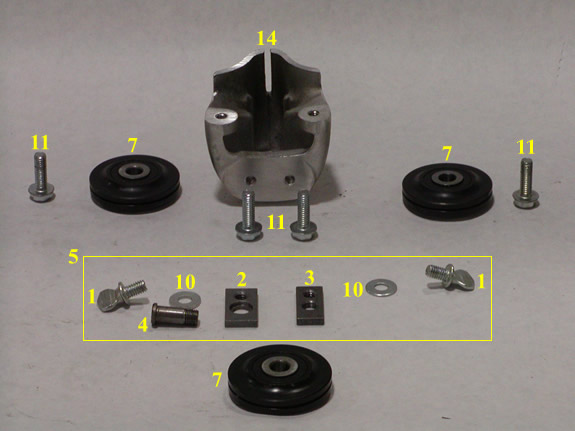

Size #20 Paddock Upper Guide Parts Breakdown

1. Thumb Screw
2. Large Slide
3. Small Slide
4. Slide Connecting Screw
5. Axle Slide Assembly
6. ---
7. 617-R Ball Bearing Wheel
8. ---
9. 3/4" Top Guide Shaft (Not Shown)
10. Washer
11. 5/16" x 1" Hex Bolt
12. ---
13. ---
14. Upper Guide Body Casting
15. ---
