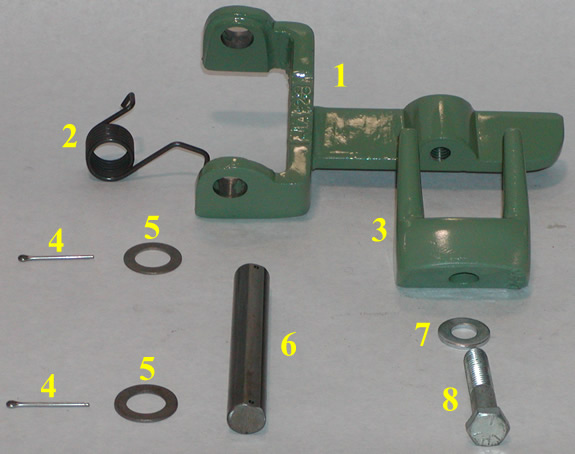

Front Jointer Guard Clamp Bracket Assembly Parts Breakdown

1. JA-28 Guard Clamp Table Casting
2. J-138 Guard Spring
3. JA-27 Guard Clamp Lower Form
4. 1/8" Cutter Key
5. 3/4 Bore Spacer
6. J-139 Guard Shaft
7. 1/2" Sae Washer
8. 1/2-13 x 2 3/4 Hex Bolt
